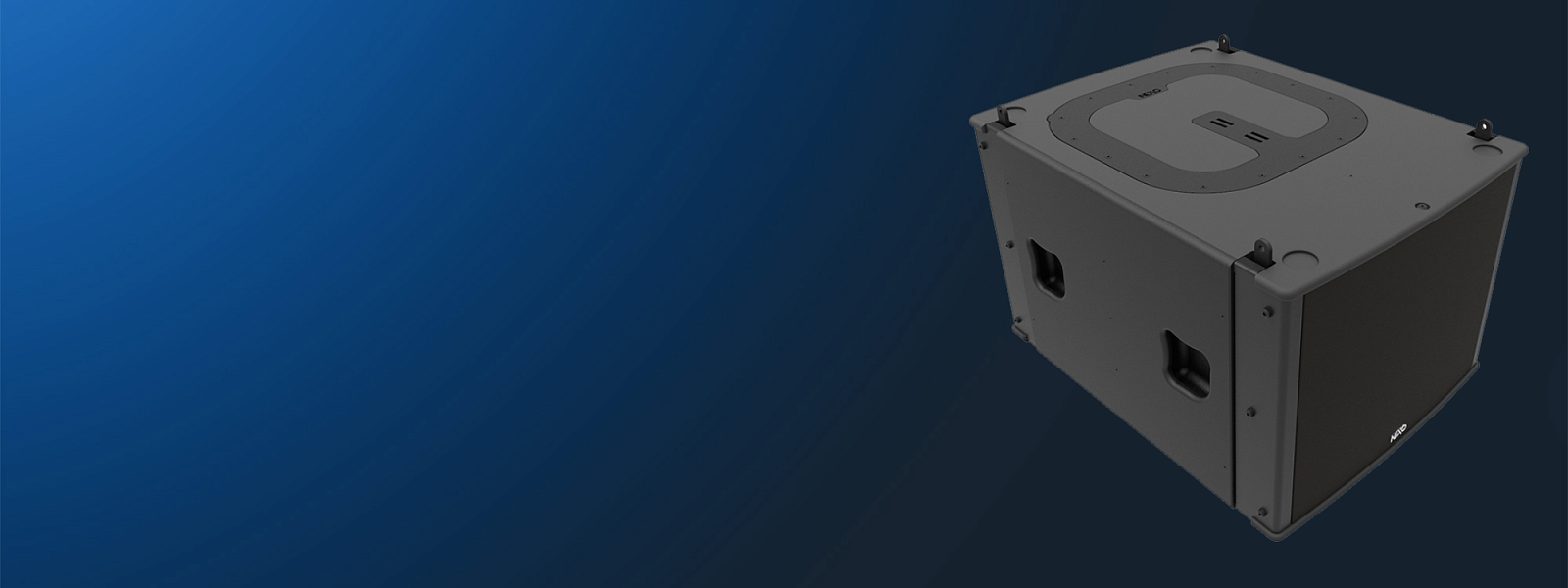

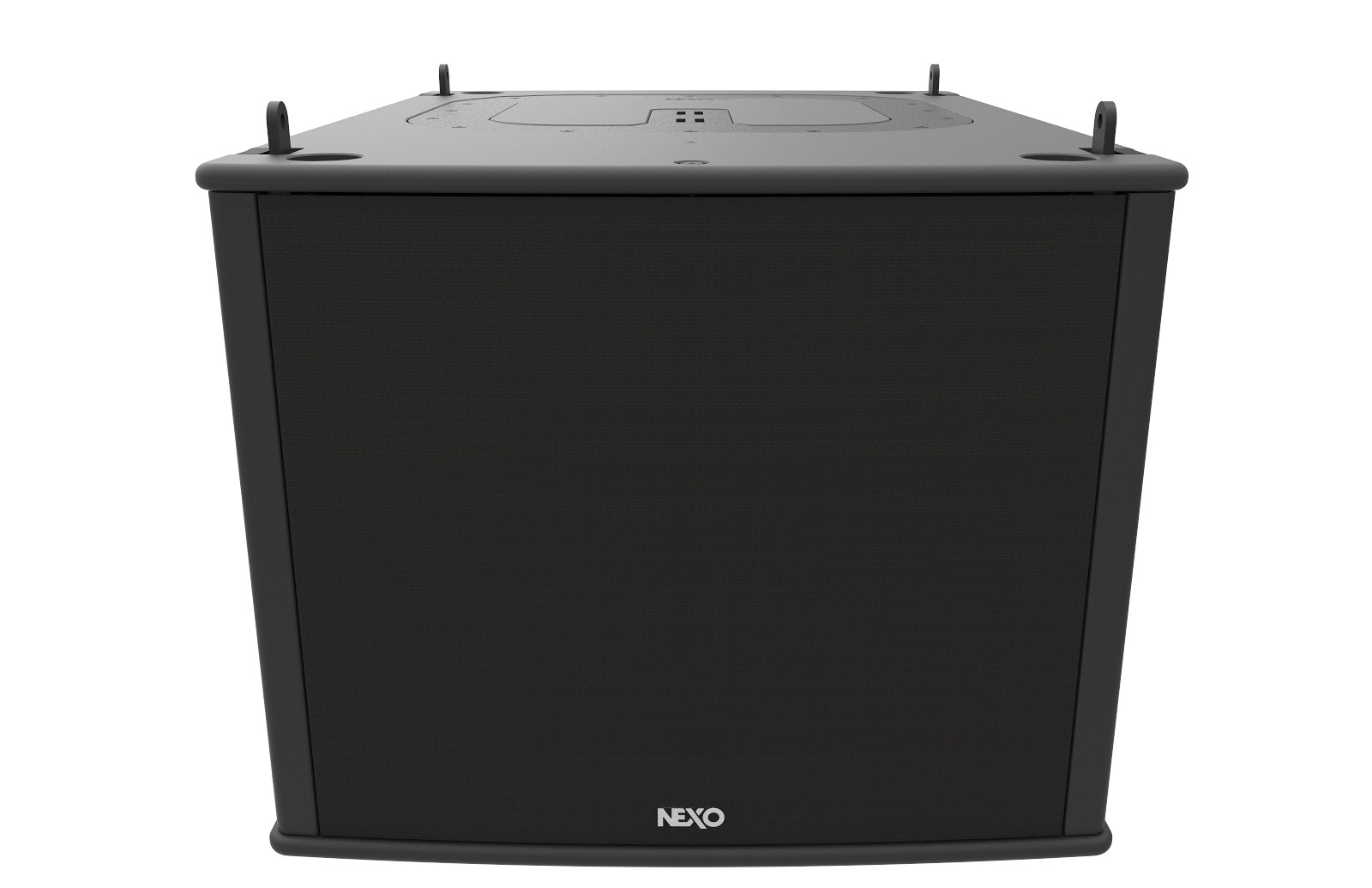

Описание NEXO MSUB15
SPECIFICATIONS
Frequency Response @-6 dB 40 Hz to 120 Hz
Sensitivity 1W@1m 101 dB SPL Nominal
Peak SPL@1m 136 dB
Available Crossover Frequencies 40-65, 40-75, 40-85, 40-95, 40-120 Hz
Nominal Impedance 8 Ohms
Recommended Power 900 Watts
FEATURES
Component 1 x 15” 8 Ohms long excursion Neodymium driver
Height x Width x Depth 531mm x 434mm x 704mm (20.9” x 17.2” x 27.7”)
Weight: Net 40 kg / 89 lbs
Connectors 2 x Cable gland with 2 cores cables
Construction Baltic Birch Plywood & textured black or white coating
Fittings 4 x Side handles
Front Finish Acoustic fabric fitted from grill
Operating temperature range 0°C - 40 °C
Storage temperature range -20 °C - 60 °C
System Operation
Recommended powering solution NXAMP4x2mk2 Powered TDcontroller: up to 2 x MSUB15 per channel
Optional powering solution NXAMP4x1 Powered TDcontroller (Bridged): up to 2 x MSUB15 per channel
NXAMP4x4 Powered TDcontroller: up to 3 x MSUB15 per channel
DTD TDcontroller + DTDAMP4x1.3 Power amplifier: 1 x MSUB15 per channel
